| Model NO.: | TX-AP204 | दिशा -निर्देश: | सर्वदिशात्मक एंटीना |
|---|---|---|---|
| वीएसडब्ल्यूआर: | 2 | बेस एंटीना: | उच्च लाभ एंटीना |
| संचालन की प्रकृति: | संचारण ऐन्टेना | संरचना प्रपत्र: | भूतल एंटीना |
| परिमाणिकता: | द्वि-आयामी एंटीना | सामग्री: | पेट |
| आवृत्ति: | 450-470MHz | एंटीना लाभ: | 2 डीबीआई |
| ध्रुवीकरण: | रेखीय | मुक़ाबला: | 50 ओम |
| रेडिएटर सामग्री: | पीसीबी+स्प्रिंग | प्रचालन तापमान: | -20 CC ~ +60 .C |
| भंडारण तापमान: | -40 ~C ~ +80 .C | ||
| प्रमुखता देना: | DVB-T digital antenna with SMA plug,external HDTV antenna for digital video,SMA plug digital TV antenna |
||
| Frequency | 450-470MHz |
|---|---|
| V.S.W.R | <= 2 |
| Antenna Gain | 2 dBi |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Material of Radiator | PCB+Spring |
|---|---|
| Material of Plastic | ABS |
| Cable Type | / |

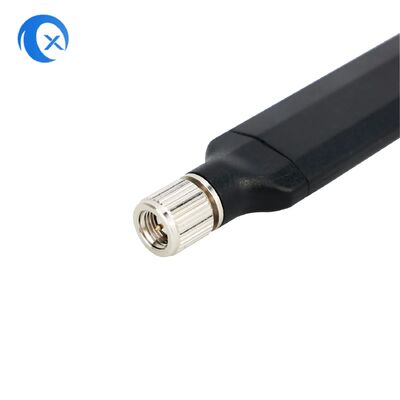

| Connector Type | SMA Plug |
| Operation Temperature | -20˚C ~ +60˚C |
|---|---|
| Storage Temperature | -40˚C ~ +80˚C |
Teng Xiang Electronics is an experienced manufacturer of RF products specializing in antennas, RF coaxial cable assemblies, and RF connectors. We deliver innovative technologies and solutions for the wireless industry, including 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, and GPS/GLONASS/BeiDou frequencies.
With expertise in telecommunications, security, automotive, medical, and IoT markets, we provide customized solutions through in-house design, R&D, and manufacturing. Our team is committed to developing high-quality products while delivering exceptional customer service.
